slavni proizvajalec 6 v 1 vrč tiskanje toplote pritisnite stroj

ED6090T

Specifikacije


Bruto moč: 1250W
Uporaba: Bill tiskalnik, tiskalnik kartic, tkanine tiskalnik, papir tiskalnik
Tip: Stroj za toplotno stiskanje
Pogoj: Novo
Avtomatski razred: polavtomatski
Napetost: 110V / 220V
Dimensions(L*W*H):54*53*49cm
Weight:29.33kg
Product name:printing heat press machine 16x20 sublimation transfer press
Zagotovljene poprodajne storitve: Inženirji so na voljo za servisiranje strojev v tujini

Opis izdelka

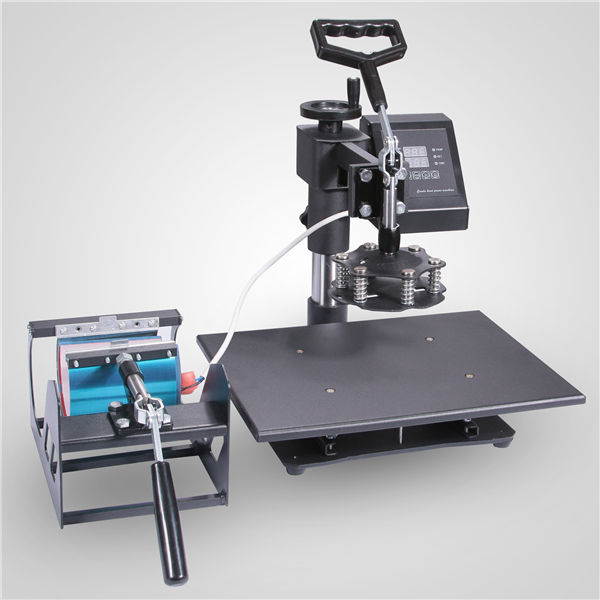

This 6 in 1 heat press machine can be used for T-shirts, caps, ceramic plates, ceramic tiles, mugs, coasters, mouse pads, jigsaw puzzles, lettering, other misc. fabrics & materials. It can transfer colorful pictures and characters of sublimating and dissolved printing ink onto ceramics, glasses and textiles such as cotton, flax, chemical fiber, nylon, etc. This all-in-one press includes flat platen, mugs and plates. The swing-away heat press boasts all of the must-have attachments. It has a built-in Teflon coated 12" x 15" (38X30cm) heat platen with a full range of heating coils to allow for consistency throughout its surface. The digital timer control is adjustable up to 999 seconds. The features a digital temperature gauge ranging from 0 - 250ºC (about 430ºF).
Large 12" x 15" transfer element - The 12" x 15" (38X30cm) heat platen provides a big surface to transfer onto flat surfaced items such as T-shirts, ceramic plates, mouse pads, jigsaw puzzles etc.
Digital LED controller - Preset the desired temperature and timer. Intelligent audible alarm after the transfer done.
Full 360-degree rotation of swing-away design - Allows the heating element to be moved safely aside and reduce the chances of accidental contact.

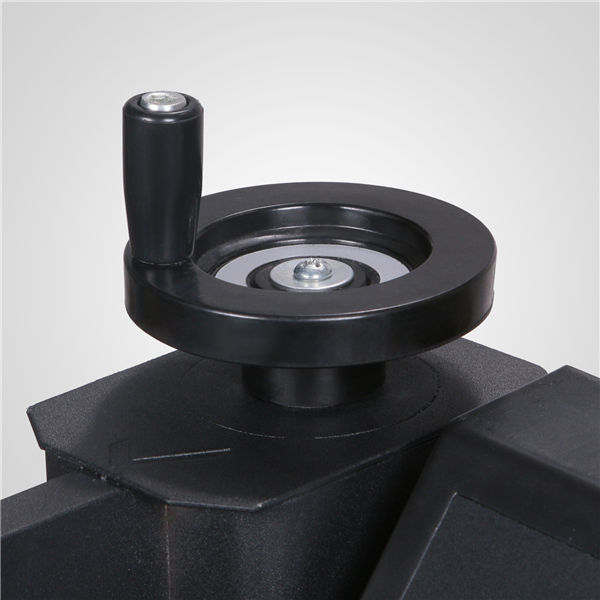

Full-range pressure-adjustment knob - This allows the pressure to be adjusted according to the thickness of the material you're transferring to.
Teflon-coated platen press element - The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.
Detachable lower platform - It is elevated with dual supports. Easily exchange to other elements.

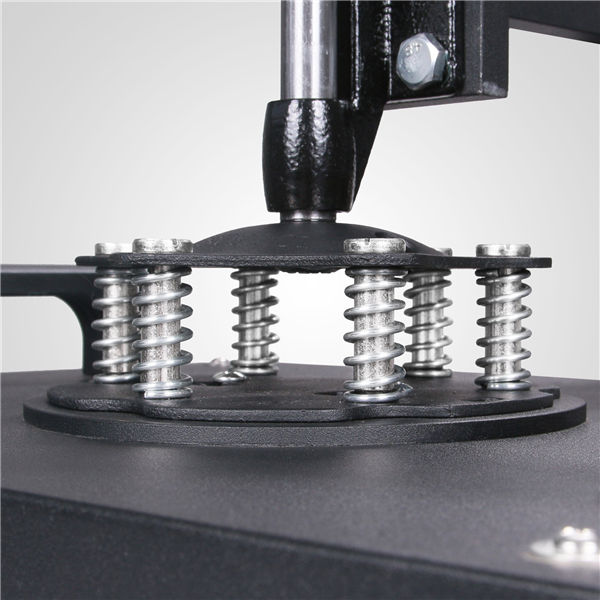

Adjustable multi-spring balancer - Allows pressure to be more evenly distributed across the entire platen when it is closed.
Upgraded aluminium alloy cradle - Detached cradle for use of the mug elements. Compact size and lightweight, as compared to standard mug cradles.
Removable lower platen - Lower platform is elevated with dual supports; these allow room for t-shirts to be easily placed into and removed from the machine, and the supports allow the platen to be easily swapped to convert the machine into a cap press.

Uporaba


This heat press machine enjoys multifunctions in one machine, it can be used for transferring on t-shirt, mug, plate, cap and so on. Moreover the heating accessory can be joined .It can swing-away 180 degrees and is convenient to take off the transferred materials and can be used for transferring on certain thick materials. You can replace the heating plate easily and conveniently without using any special tools.

Lastnosti


  • Large 12" x 15" (38X30cm) transfer element
  • Digital LED temperature and time controller
  • Full 360-degree rotation of swing-away design
  • Fahrenheit and Celsius scale are selectable
  • Full-range pressure-adjustment knob
  • Teflon-coated platen press element
  • 2 4/5" Long arm handle
  • Detachable lower platform
  • Adjustable multi-spring balancer
  • 4/5" thick heating board
  • Upgraded aluminium alloy cradle
  • Metal and plastic construction
  • Built-in fuse for safe using
  • Combo type, it could transfer images to T-shirt, mug, plate, cap and so on
  • Digital control ensures the high precision and sensitivity
  • The changing among the spare parts is available when necessary
  • High precise automatic digital tempreture indicator
  • Heating coil and heating panel are integrated, safe and durable
  • Issues with certain thickness can also be transferred
  • Adopting advanced technology and good material for better effect
  • Swing-away design and more even pressure guarantees your perfect printing.
  • Adjustable feet for unevenly floor
  • CE certification
  • 2-year warranty

Tehnično


  • Temperature range: 0 - 480ºF (0 - 250ºC)
  • Timer control: 0 - 999 seconds
  • Wattage: 1250W
  • Power input: 110V or 220V
  • Dimension (w/ platen press): 15 1/4"L x 15"W x 17"H
  • Six Elements:
  • Platen Press (telfon-coated): 12" x 15" (38X30cm)

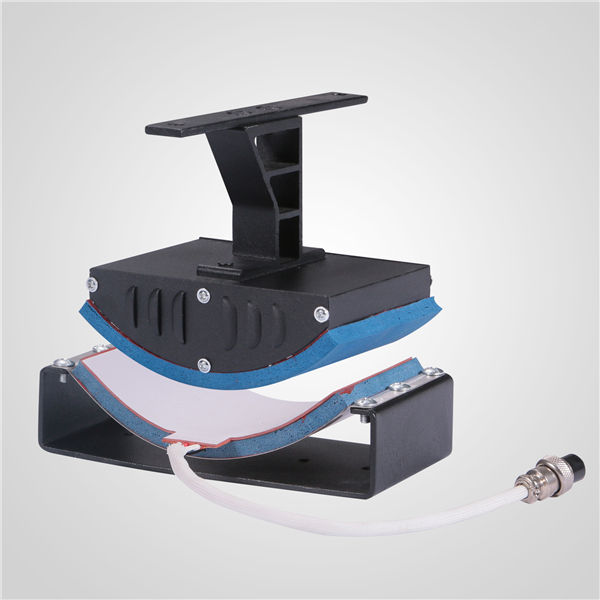

  • Hat/Cap Press: 6"x 3" (curved)
  • Mug Press #1: 2.5"-3.5" diameter (11OZ)
  • Mug Press #2: 8OZ latte mug (Cylinder)

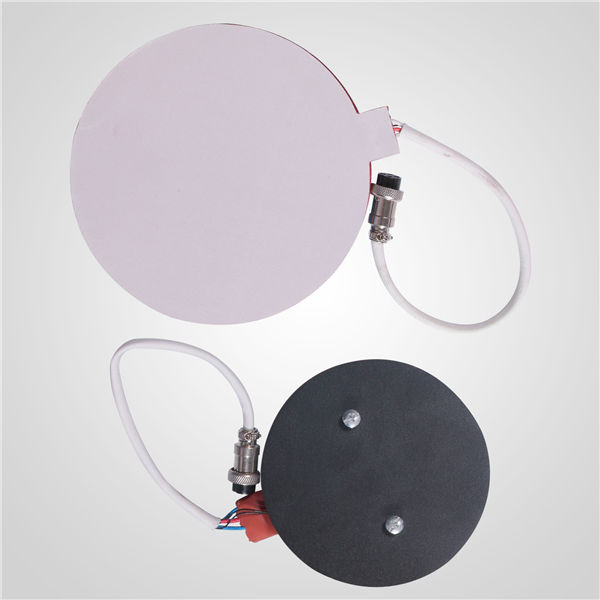

  • Plate Press #1: 5" max diameter
  • Plate Press #2: 6" max diameter

Friendly


  • 1 X Fully-assembled machine with platen press
  • 1 X Hat press
  • 2 X Mug presses
  • 2 X Plate presses
  • 1 X Removable silicone pad and cotton pad
  • 1 X Operating Manual
  • T-shirts, cups and hats are NOT included
